Fully Automated CNC Sheet Metal Bending Machine
Flexible Bending CNC Folding Machine with ±0.1mm Precision and 7/16 Axis Configuration for Metal Shaping Applications
This versatile panel bending system combines arc bending, step bending, and hemming functions in one tool set, offering flexible bending solutions for curtain wall aluminum, laboratory furniture, enclosure cabinets, metal doors, and various industrial applications.
Key Features
- Pressure arm feeding system for high versatility and material handling
- Customizable auxiliary folding knife and power hinge knife configurations
- Customized processing of workpiece bending height for specialized applications
- Customized presser foot lifting function for enhanced operational flexibility
- High-speed motors for improved processing efficiency and productivity
Technical Parameters
| Model |
HC-2500 |
HC-2500P |
| Feeding structure |
Pressure arm type |
Pressure arm type |
| Minimum internal dimensions for quadrilateral forming |
180mm x 280mm |
180mm x 280mm |
| Bending height |
170mm (customizable) |
170mm (customizable) |
| Average power |
About 2.9KW |
About 3.5KW |
| User operating environment |
Operation system above Win7 |
Operation system above Win7 |
| Maximum bending thickness |
Cold plate 1.5mm
304 stainless steel 1.0mm |
Cold plate 2.0mm
304 stainless steel 1.5mm |
| Number of axles |
13 |
13 |
Advanced Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing.

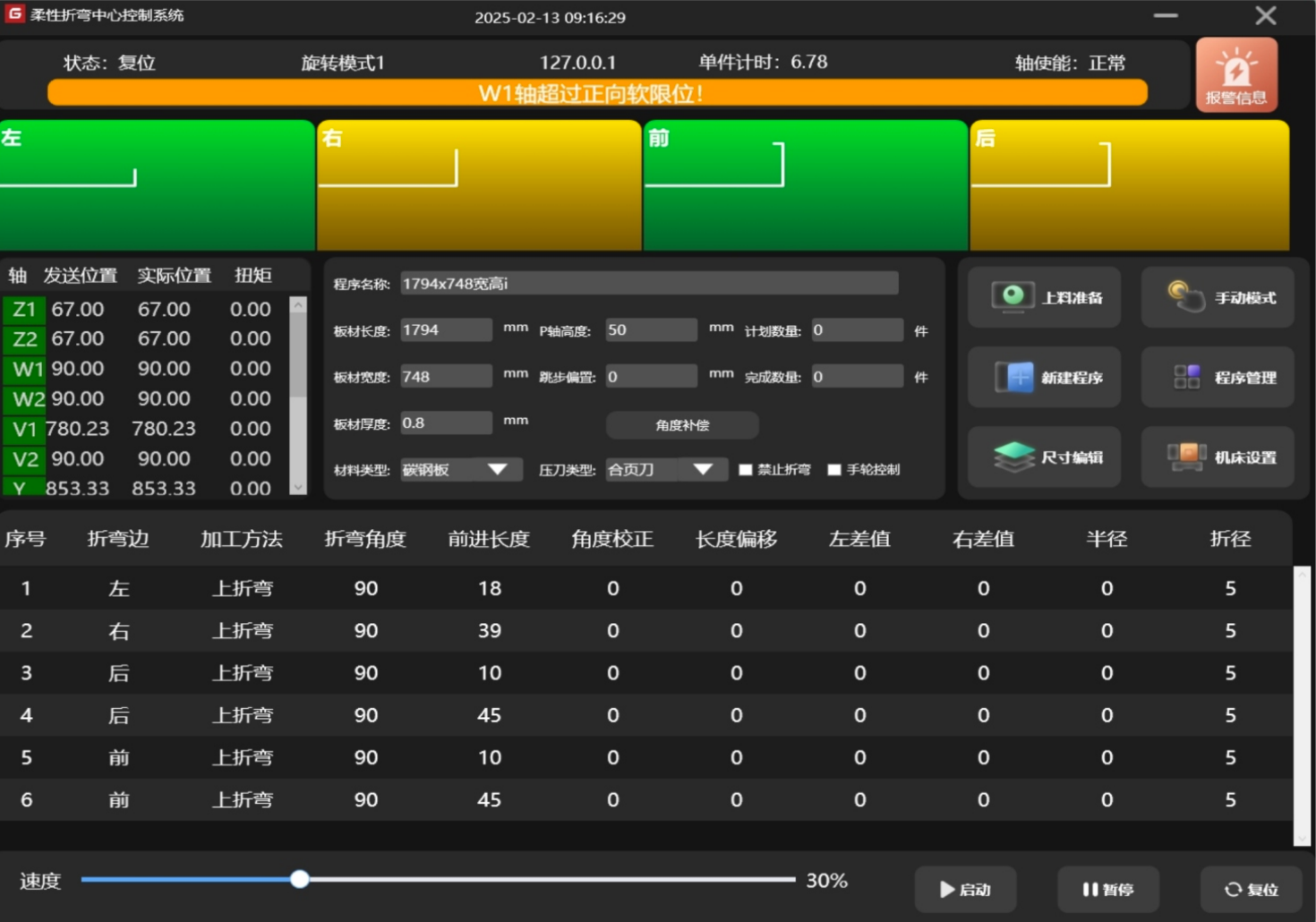

User-Friendly Operation Interface
The interface is simple, easy to learn, with excellent human-computer interaction designed for efficient operation and minimal training requirements.
Industrial Applications
Custom height versions serve specialized applications including deep-drawn components, tall-flange enclosures, architectural features requiring extended bends, medical equipment with unusual geometries, and custom fabrication projects where standard height is insufficient.
Operation Instructions
Complete pre-start checks including vacuum and safety systems. Power up and allow initialization. Select manual or auto mode based on operational needs. For new parts, use the programming wizard. Load material and verify suction. Start cycle and observe operation. Check finished parts for quality. Shut down and clean after use.
Shipping & Delivery Information
Delivery Time: 40 working days after deposit confirmation
Transportation Methods: Sea freight or land transport available, handled by professional freight companies
Quality Assurance: Full function testing conducted before shipment
Export Documentation: Commercial invoice, packing list, certificate of origin, and other required documents
Payment Terms
Payment Methods: T/T (wire transfer) accepted
Currency Support: USD or RMB settlement supported
Documentation: Proforma invoice provided for customer payment arrangement
Frequently Asked Questions
Can you arrange samples for me?
Of course, we provide free samples according to customer requirements.
What is the warranty period for the machine?
The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines according to customer requirements.
What types of sheet materials can your machine bend?
Typically, carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet are available for processing.
